| Part Number | MF105ZZ |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Shielded |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 8 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia (d) | 5mm |
| Bore Dia Tolerance | -0.008 to 0 |
| Outer Dia (D) | 10mm |
| Outer Dia Tolerance | -0.008 to 0 |
| Width (B) | 4mm |
| Width Tolerance | -0.12 to 0 |
| Ball Dia | 1.2mm |

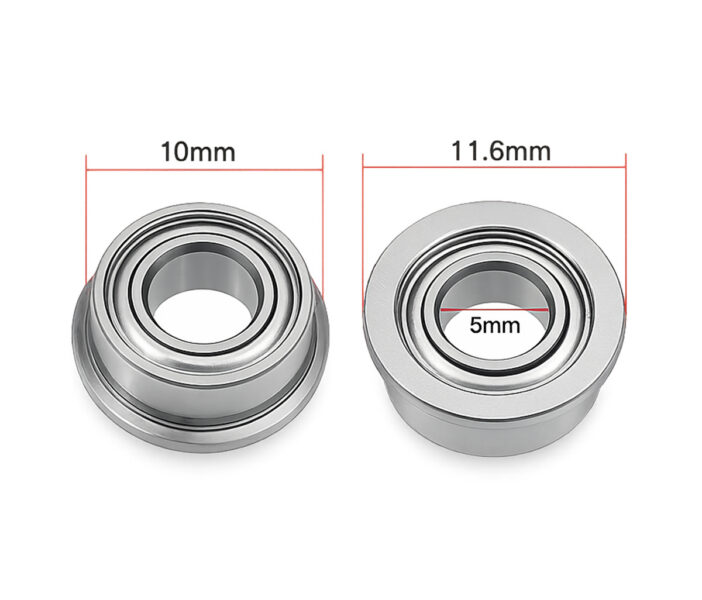

| Flange Outer Dia | 11.6mm |
| Flanbe Thckness | 0.8mm |
| Radial Clearance | 0.002mm to 0.013mm |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
| Shielded Material | 300 Series Stainless Steel |
Performance |
|
| Dynamic Radial Load | 82 lbf |
| Static Radial Load | 30 lbf |
| Max Speed (Grease) *1000rpm | 50 |
| Max Speed (Oil) *1000rpm | 57 |
| Temperature Range | -30° to 110° |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.45 g |

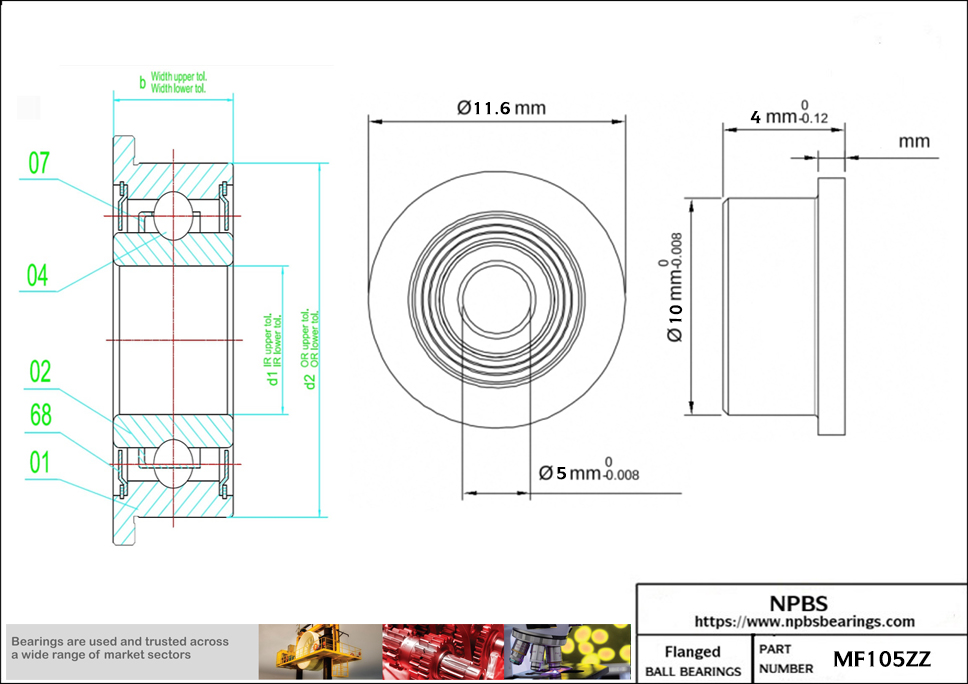

Technical Scribble
Documentation
Closures and Seals |
Cages and Retainers |
Tolerances and Precision |
Internal Clearance |
Lubrication |
Fitting and Mounting |
Load and Life Calculation Information |
eDrawings file (.ePRT, eASM) |
All information in this catalog has been thoroughly checked for accuracy. However, the catalog data should not be relied upon entirely for design and development purposes. NPBS® Bearings assumes no liability for possible errors or omissions. All dimensions and specifications are subject to change without notice. Contact NPBS® Bearings for the most current catalog data as it applies to you and for your application.

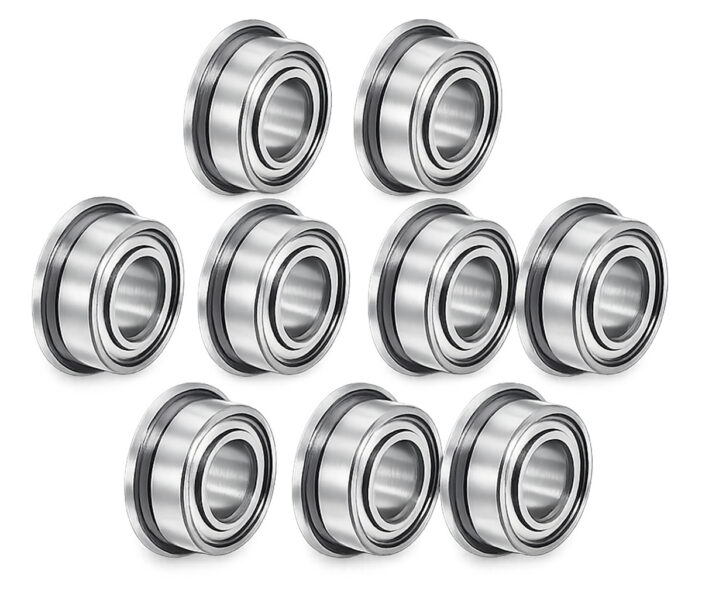

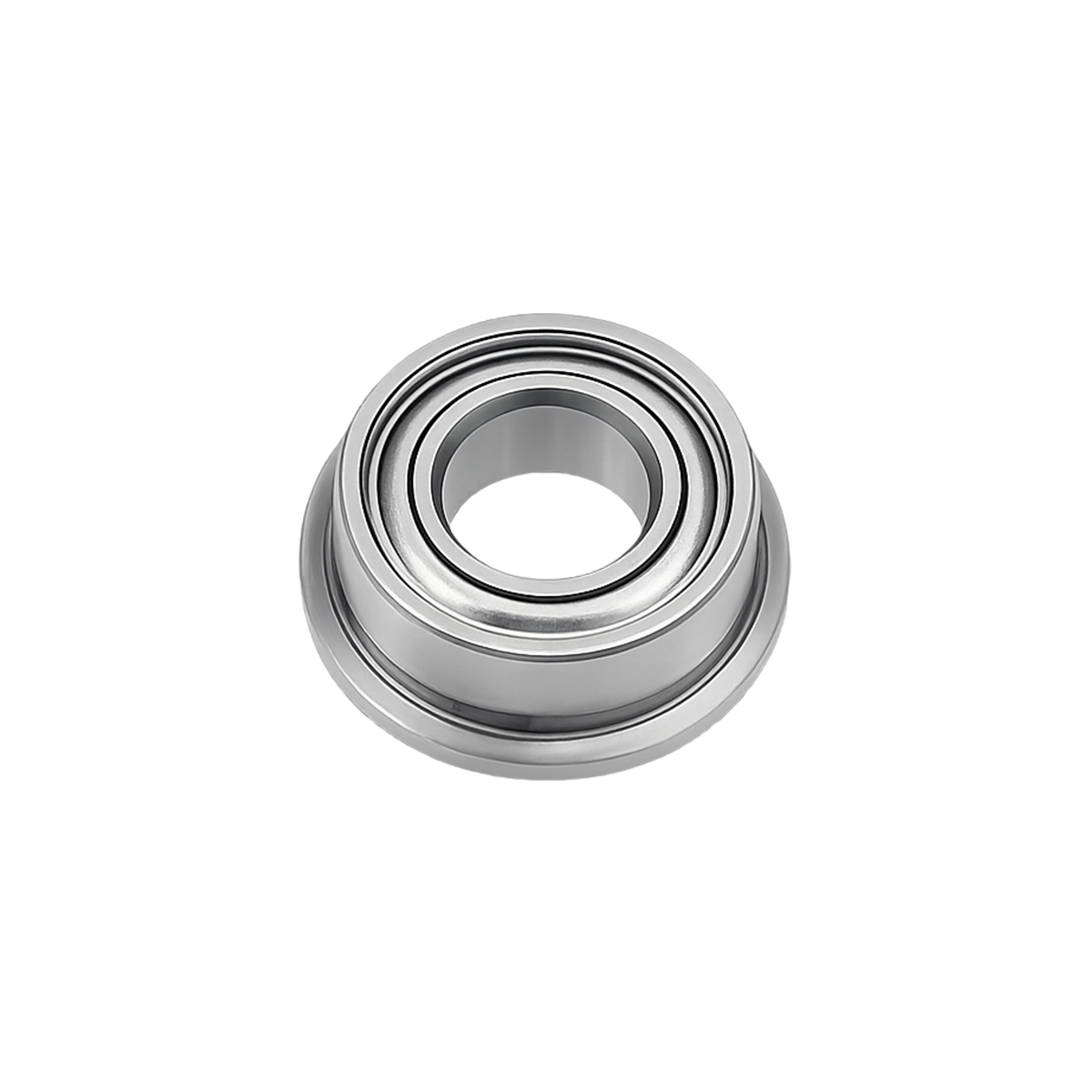

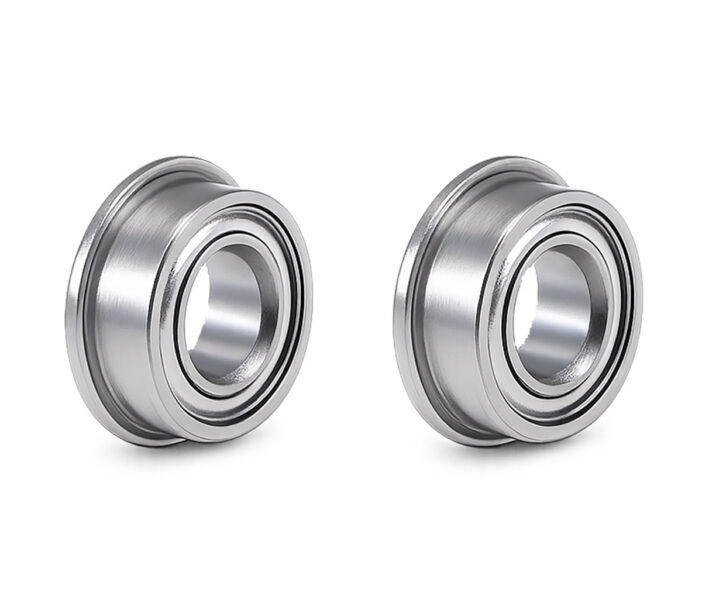

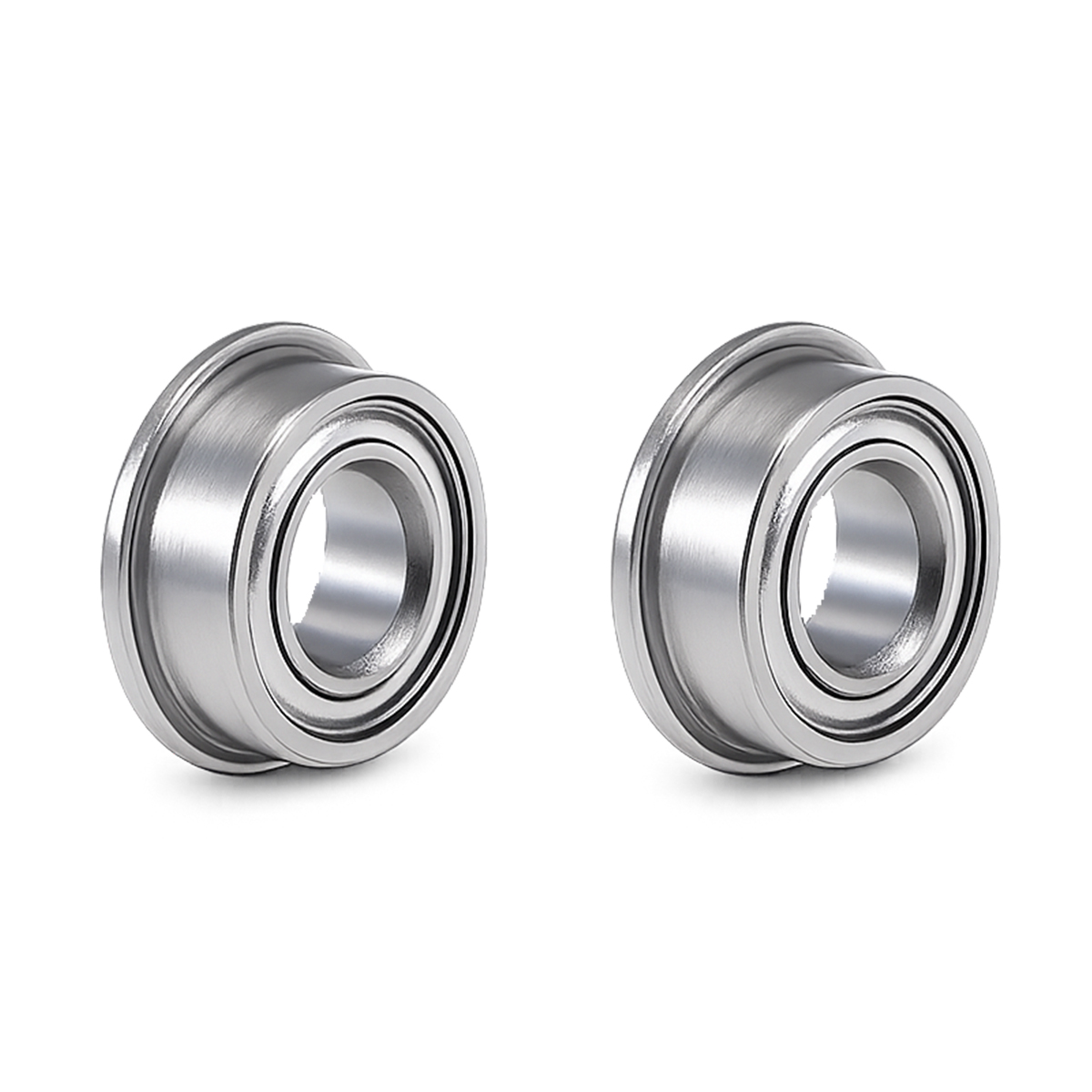

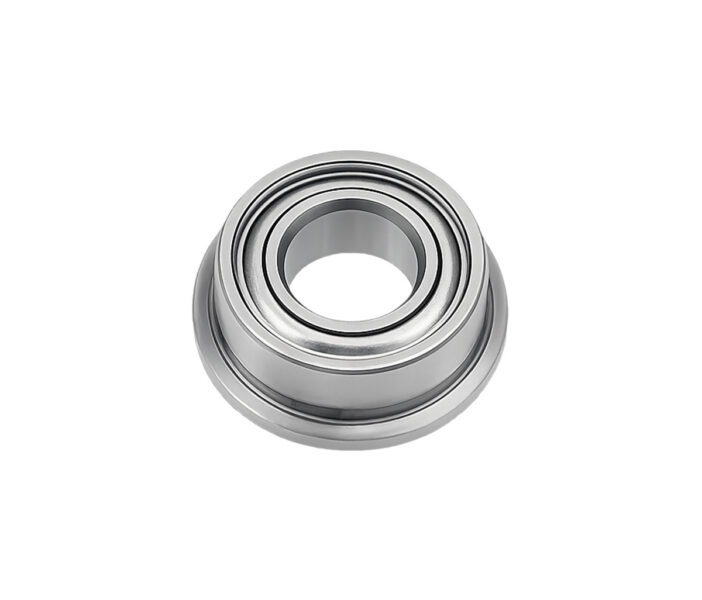

MF105ZZ Precision Miniature Flange Ball Bearing
Key Features

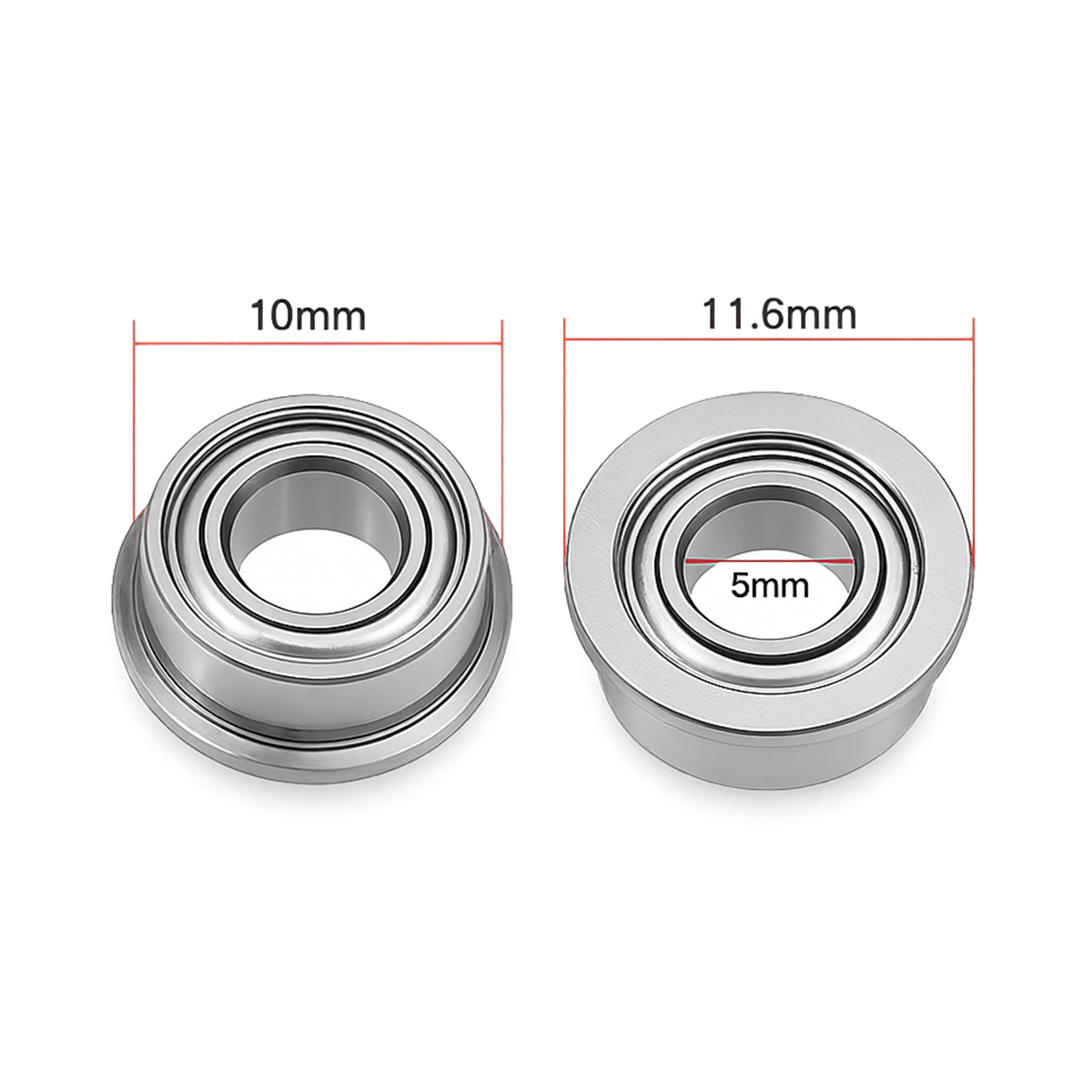

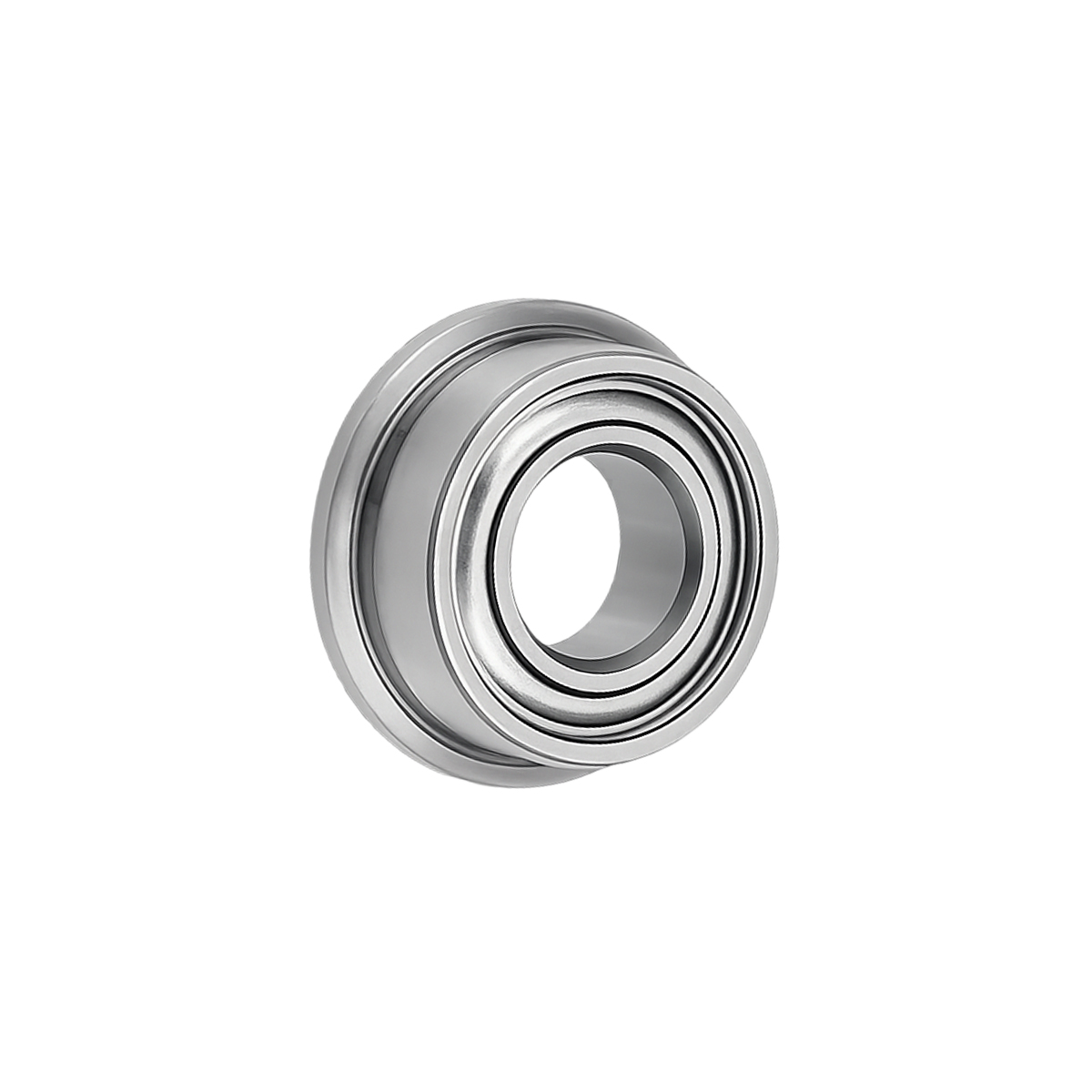

MF105ZZ is an ABEC1 Miniature Flanged Ball Bearing manufactured to be Metal Shielded on both sides and is pre-lubricated with grease allowing it to be ready for use upon delivery. Made from Chrome Steel, MF10ZZ is a MF Series Flanged Miniature Ball Bearing that is lighter in weight while also being able to withstand moderate radial loads and moderate axial loads. Our MF Series Flanged Outer Ring have a Steel Flange located on the outer ring, the flange extends around the entire circumference of the outer ring allowing for improved running accuracy and easier locating on a housing while also preventing any axial movement of the bearing in the event of a thrust load being put onto it. MF105zz flange outer dia is 11.6mm and its flange thickness is 0.8 mm. Its robust construction and flange design can offer reliable performance and extended service life.
Applications / Industries
MF105ZZ Miniature Ball Bearings are used in a range of applications from Electric Motors to Dental Equipment, Surgical Instruments, RC Cars, RC Helicopters, RC Planes, RC Trucks, Lab Equipment, Align Trex 600, Jewelry, Hand Piece, Radio Controlled Models, Anemometers, Small Motors, among others.
