Product Details
Technical Data
Overview |
|
|---|---|
| Part Number | MR105ZZ |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Shielded |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 8 |
| Tolerance Class | ABEC1 |
Dimensions |
|
| Bore Dia (d) | 5mm |
| Bore Dia Tolerance | -0.008 to 0 |
| Outer Dia (D) | 10mm |
| Outer Dia Tolerance | -0.008 to 0 |
| Width (B) | 4mm |
| Width Tolerance | -0.12 to 0 |
| Ball Dia | 1.2mm |
| Radial Clearance | 0.005mm to 0.01mm |
| Radial Clearance Trade No | MC3 |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Stainless Steel |
| Shielded Material | 300 Series Stainless Steel |
Performance |
|
| Dynamic Radial Load | 82 lbf |
| Static Radial Load | 30 lbf |
| Max Speed (Grease)*1000 rpm | 50 |
| Max Speed (Oil)*1000 rpm | 60 |
| Temperature Range | -30° to 110° |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.26 g |

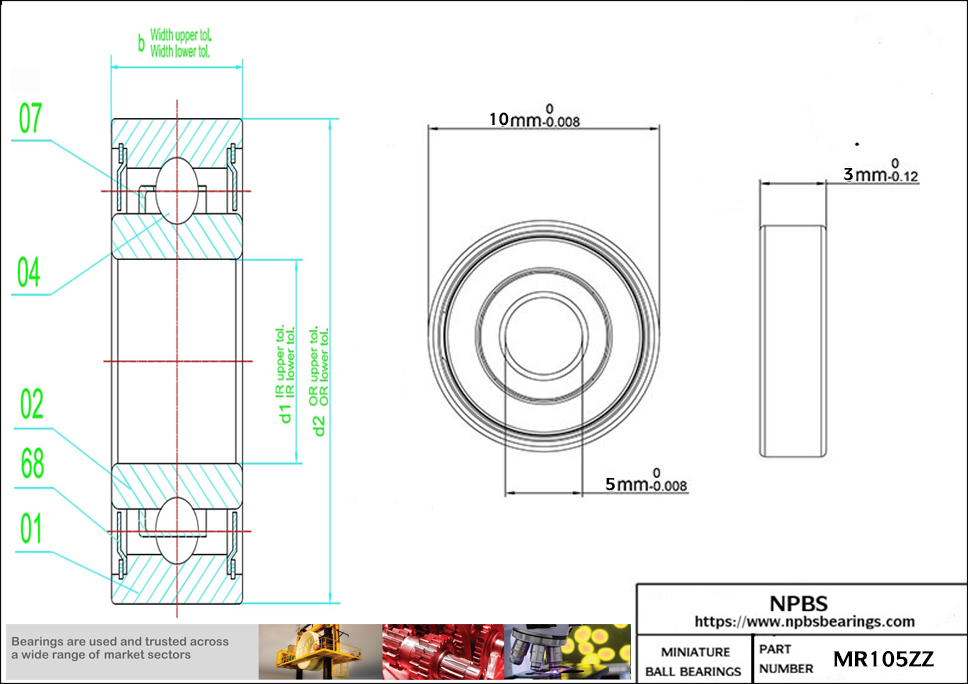

Technical Scribble
Documentation
Closures and Seals |
Cages and Retainers |
Tolerances and Precision |
Internal Clearance |
Lubrication |
Fitting and Mounting |
Load and Life Calculation Information |
eDrawings file (.ePRT, eASM) |
All information in this catalog has been thoroughly checked for accuracy. However, the catalog data should not be relied upon entirely for design and development purposes. NPBS® Bearings assumes no liability for possible errors or omissions. All dimensions and specifications are subject to change without notice. Contact NPBS® Bearings for the most current catalog data as it applies to you and for your application.

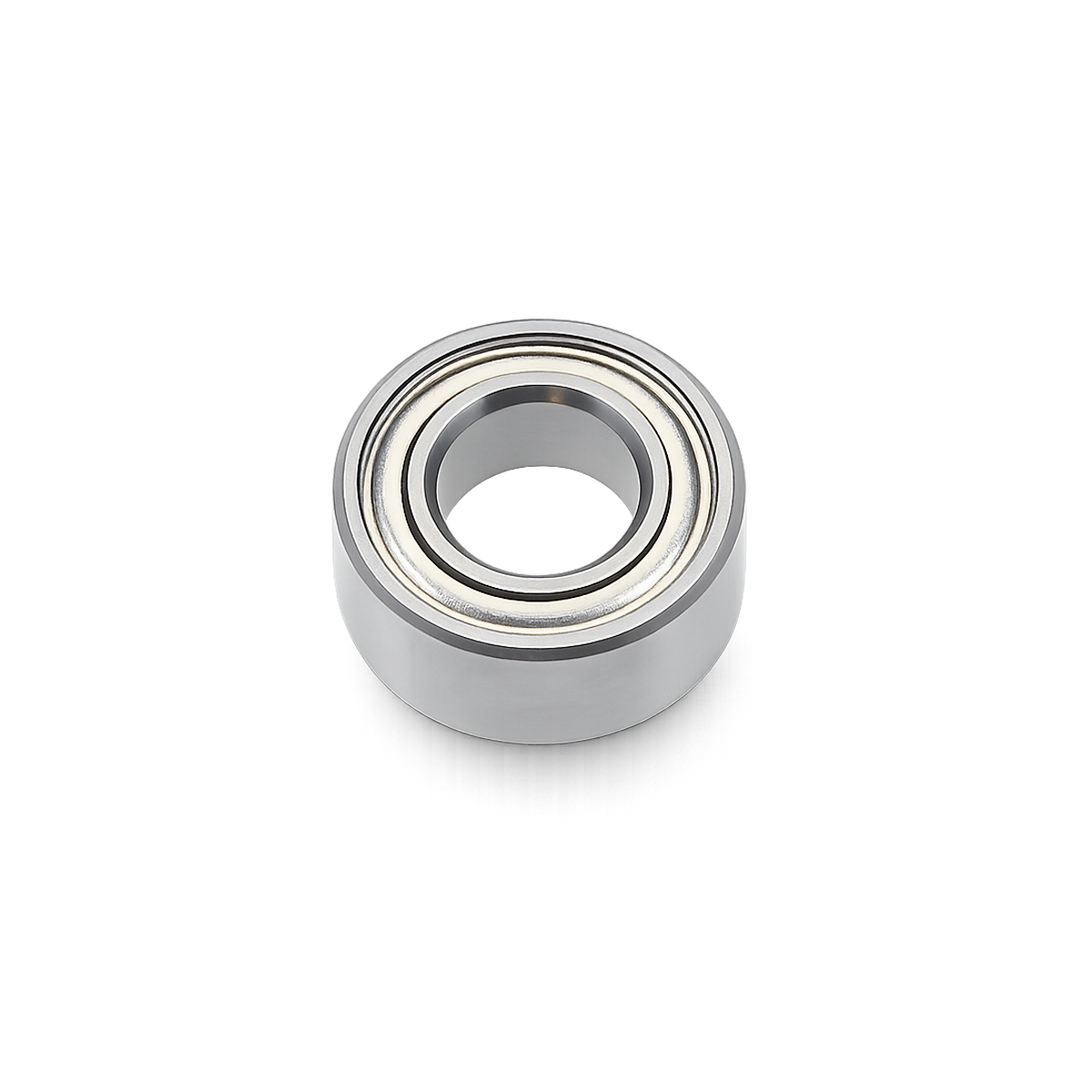

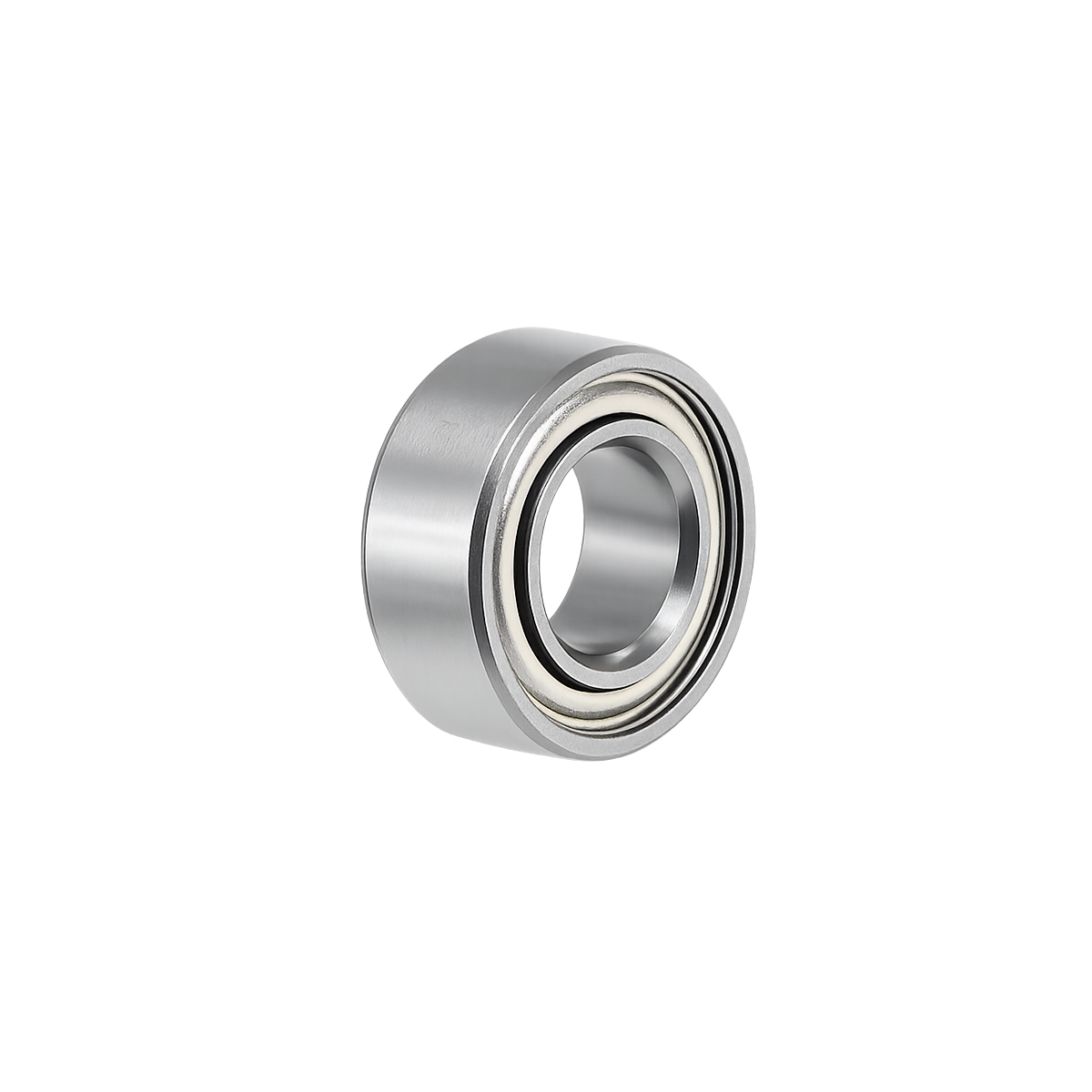

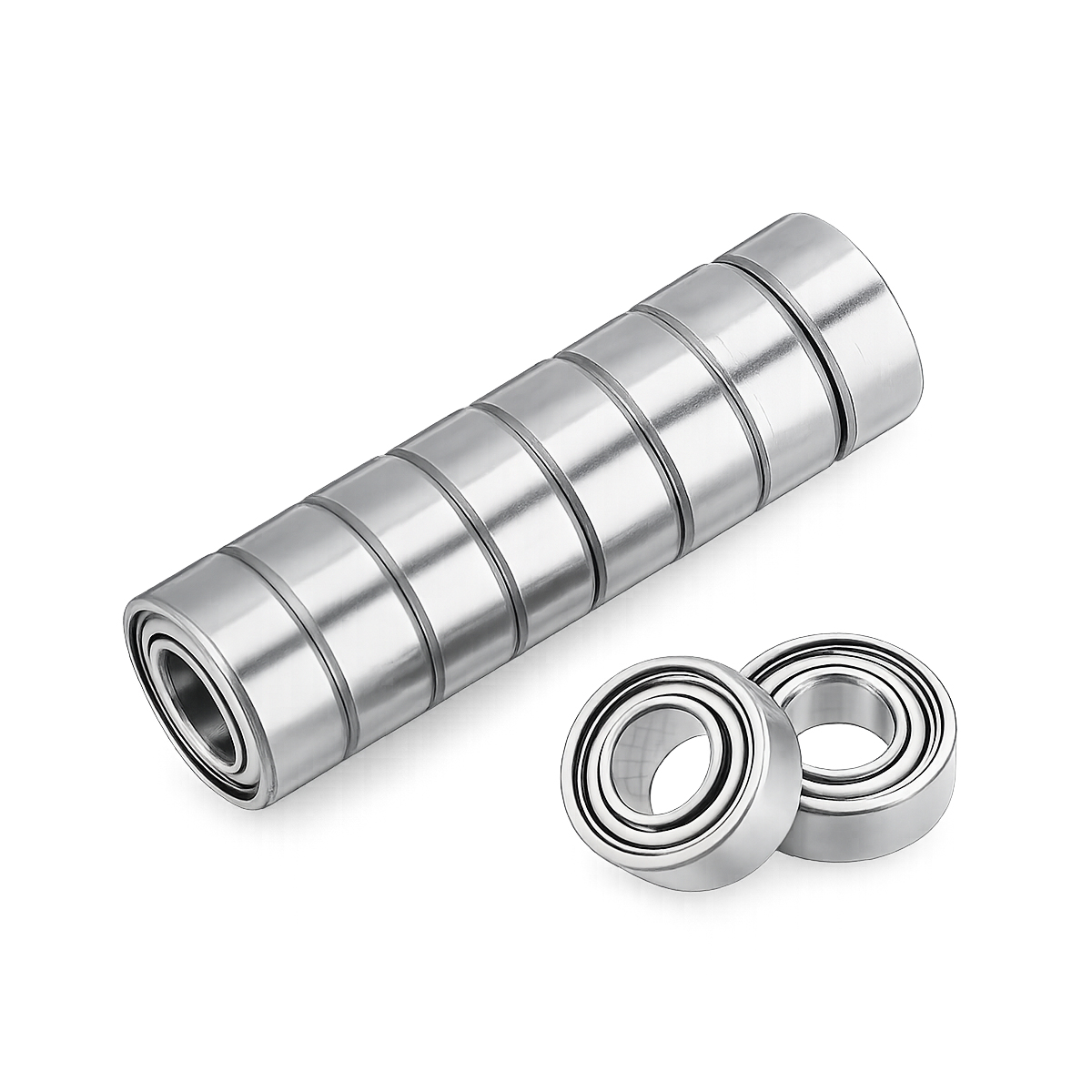

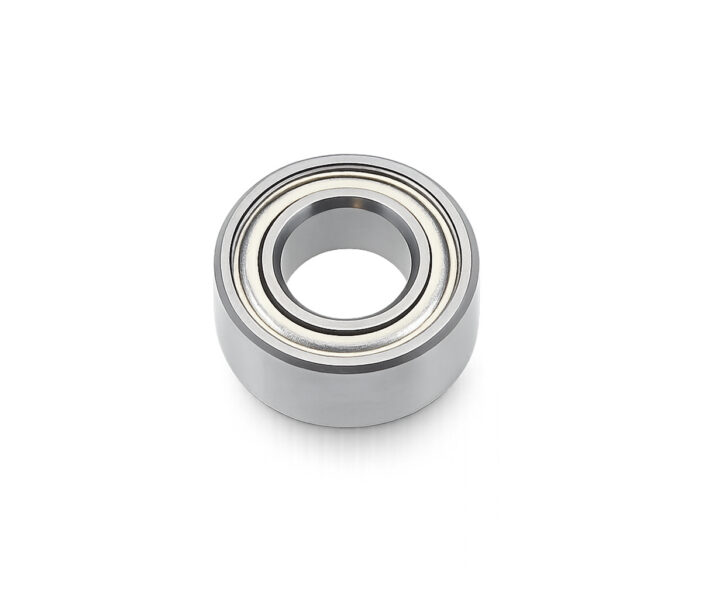

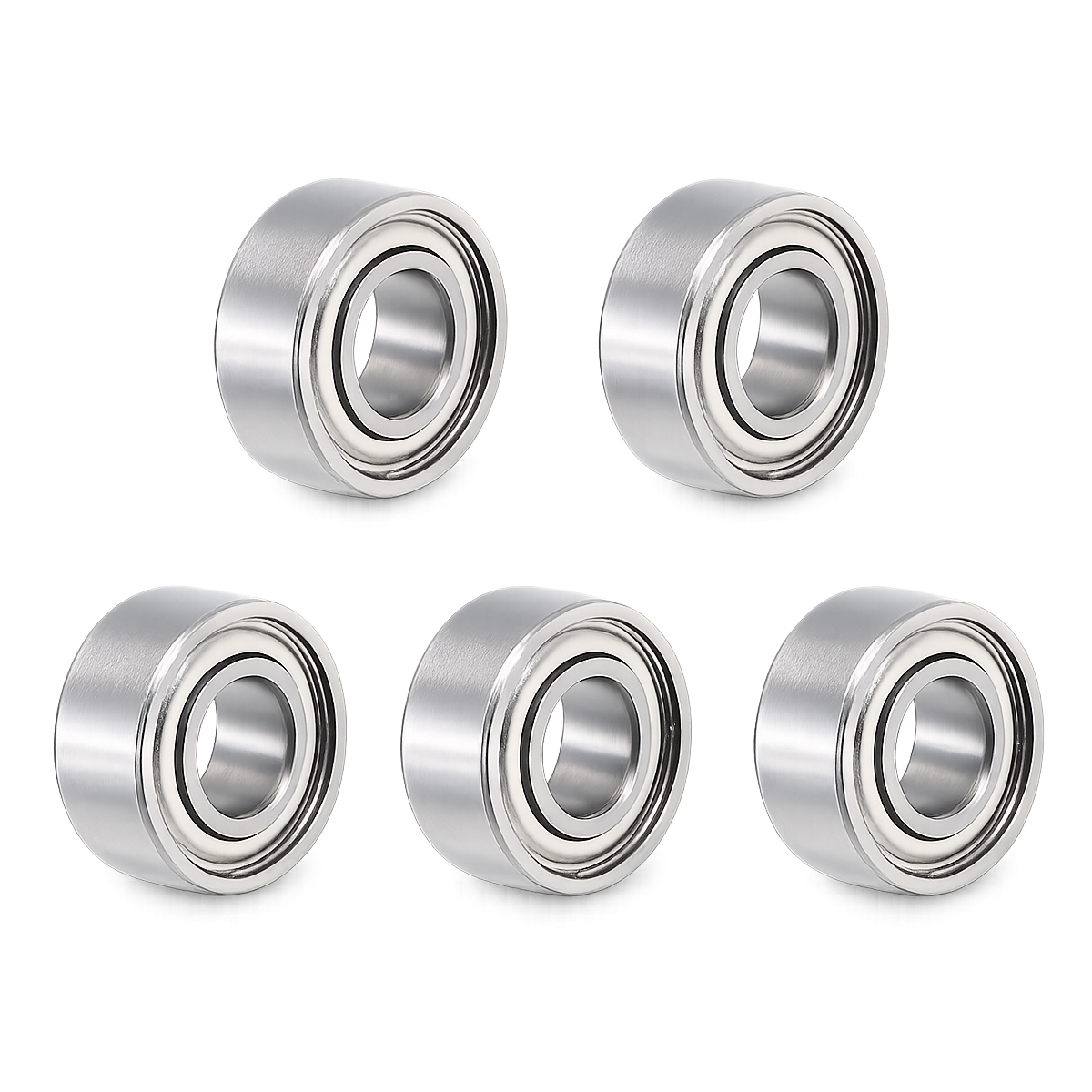

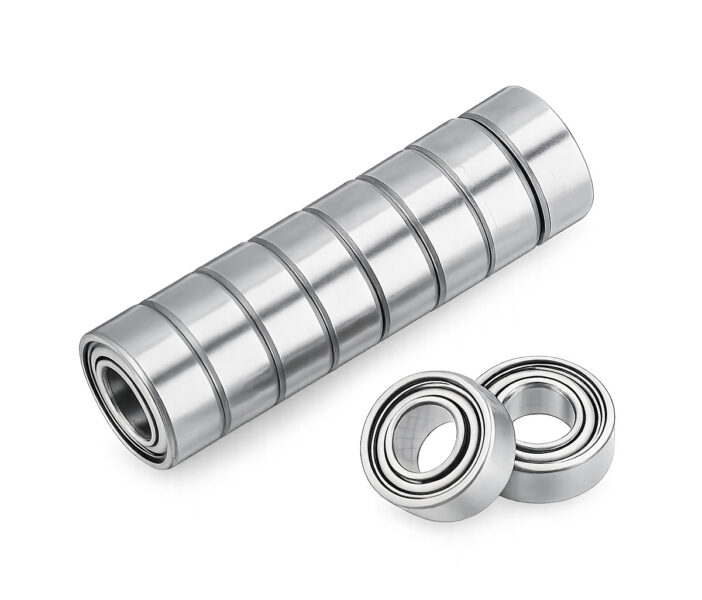

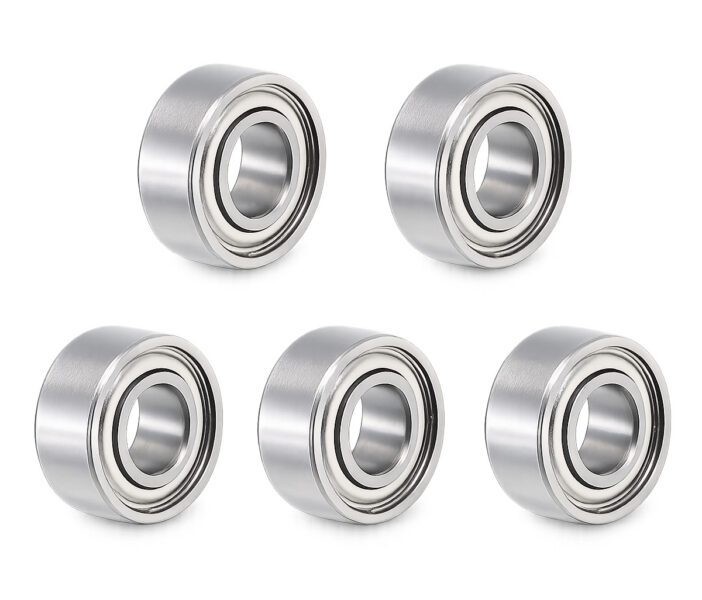

MR105ZZ Precision Miniature Ball Bearing
Key Features
MR105ZZ is a Precision Miniature Ball Bearing manufactured to have both sides Metal Shielded and is pre-lubricated with grease to allow it to be ready for use upon delivery. Made from Chrome Steel, MR105ZZ is an MR Series Miniature Ball Bearing meant for light-duty applications but despite its lightweight, can support moderate radial loads. Our MR Series Bearings have smaller OD which assist in being able to be used in high speed applications.
Applications / Industries
MR105ZZ Miniature Ball Bearings are used in a range of applications from Electric Motors to Dental Equipment, Surgical Instruments, RC Cars, RC Helicopters, RC Planes, RC Trucks, Lab Equipment, Align Trex 600, Jewelry, Hand Piece, Radio Controlled Models, Anemometers, Small Motors, among others.
